TVR: Vertical Solar Serie
Driving Innovation in Solar Trackers

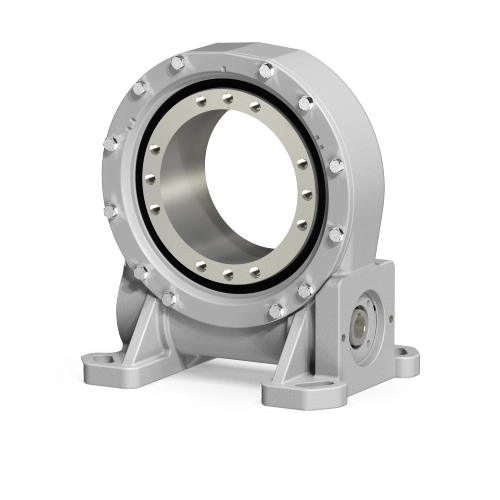

The Vertical Series slew drives feature a base that enables direct mounting onto a structure for vertical operation. Unlike traditional slewing rings, these slew drives incorporate a geared ring, which is secured within the housing using bearings or bushings.
Additionally, they are equipped with an external lip seal, offering enhanced protection against dust and water.
Features
- HNBR Lip seal
- Resistant to UV light
- Ingress protection: IP 65
- Can be provided in various colors or with specialized coatings for enhanced corrosion resistance.
- Available in both Metric and Imperial sizes, with Shaft options including Keyed or splined shafts.
Applications
- Single Axis Solar Trackers
Accessories
We offer a range of accessories for the TVR Series, widely used in solar parks worldwide.
Our SOBA (Square Oscillating Bushing Assembly) is specifically engineered to endure extreme weather conditions with minimal maintenance.
Additionally, we provide a selection of high-quality DC motors, rigorously tested to ensure optimal performance even in the most demanding environments.
SOBA Z2
- For tube size 120 x 120 mm
- Technical composite plastic design
- Steel upper reinforce
- UV Resistant
- Double rotation system
- Admissible deviation 15°
- No lubrication required
- Horizontal surface fixed
SOBA Z3
- For tube size 120 x 120 mm
- Technical composite plastic design
- Steel upper reinforce
- Iron cast lower fixing component
- UV Resistant
- Double rotation system
- Admissible deviation 15°
- No lubrication required
- Vertical surface fixed / Beam fixed
SOBA Z4
- For tube size 120 x 120 mm
- Technical composite plastic design
- Steel upper reinforce
- UV Resistant
- Admissible deviation 15°
- Admissible deviation 15°
- No lubrication required
- Horizontal surface fixed
DC Motors
- Oval / Squared flange
- IP65 protection
- UV Resistant
Related Products
Looking for a different solution? Our R&D team has developed the MultiDrive system, designed to enhance overall performance and efficiency.
Ask information
IFORE GREEN POWER is always available to find the perfect solution for its clients. Contact us and we will find the perfect response for your needs.
Technical Data
Download the technical profile with all the characteristics related to this product.
